Carli Suspension 2.5" Leveling System, 14+ Ram 2500 Diesel (Rear Air Ride)

(No reviews yet) Write a Review
SKU:
CS-DLEVEL-1419-D-AR
Weight:
229.00 LBS
$2,235.00
Frequently bought together:

Description

The Carli Suspension leveling system is a custom tuned 2.5" suspension system for the 2014-18 Dodge Diesel & 2019+ 2500, including all the necessary components needed to complete your installation. Designed ONLY FOR VEHICLES WITH REAR AIR RIDE.

The Carli leveling kit provides 2.5″ of front lift that delivers 50% more suspension travel than the stock Ram. Blueprinted coils paired with extended travel shocks increase control and comfort without breaking the bank.

Signature Shock Tuning is achieved by way of a 2.0″ IFP Fox Shock, providing users with comfortable entry level off-road capability, paired with a controlled, vastly improved on-road ride.

Front Lift Rear Lift Front Travel Rear Travel Shock Diameter Tire Fitment
2.5″ 0″ 9″ 9″ 2.0″ 35″X12.50

COMPONENTS INCLUDED:

  • 3" Lift, Linear Rate Coil Springs
  • Front and Rear Fox 2.0 Shocks, Custom Tuned

The Details: Your truck will sit 2.5” higher in the front (cab configuration dependent) with a touch more suspension travel than the factory platform thanks to the taller, lighter rate coil springs.

Wheels and Tires: We recommend a 35” tire on a wheel that’s no more than 9” wide with 5.5”-6” Backspace. An 18” diameter wheel will be best to ensure optimal ride quality (more rubber = better small bump compliance) and an unloaded tire pressure of 45F/40R is recommended. The addition of a Carli Low-Mount Steering Stabilizer is recommended for any tire over factory size.

This system is designed for the customer that keeps their truck on the road with an eye for quality and appreciation for bang-for-their-buck. At the heart of this system is a 2.5” lift, Linear Rate Coil Spring paired to matched travel Fox 2.0” IFP Shocks that have been custom tuned, in house, for superior ride quality and handling. The rear shocks are also included with this system and have been custom tuned to maximize the ride quality for the factory rear coil springs. As the rear springs remain unmodified, load capacity is maintained while predictability is improved. For those that aren’t looking for massive increase in travel or big shocks but still desire a level stance and improved ride quality and handling characteristics, this is the perfect kit. The 2.5” lift height doesn’t require the front or rear geometry correction of our 3” Systems.

The front axle will be slightly pulled to the Driver’s side following installation of the lift; this can be corrected with the addition of our Adjustable Track Bar. Further, ride quality can be substantially increased with the addition of our Torsion Sway Bar.

PLEASE NOTE:
This system will NOT be upgradeable to any of the 3″ Carli Suspension Systems. It’s designed to be a solution for customers wanting a quality system with minimal lift and part inclusion. Customers can purchase the Pintop leveling shock package for a huge boost in on-road control and off-road performance as well as ancillary components compatible with this lift height but there isn’t compatibility between the 2.5″ leveling and 3″ lift systems.

We recommend slight eccentric bolt compensation to correct caster after the lift as there are no Radius Arm Drops. For this reason, customers may experience a slight bow in the coil spring. We did not experience a coil bow in any of our test trucks but it’s possible at the 2.5” lift height without a Radius Arm Drop Bracket.



OPTIONAL UPGRADES:

Torsion Sway Bar:

- Easily the best "bang for the buck" upgrade for ride quality
- Allows front suspension to move freely without giving up control
- Requires removal of electronic sway bar on Power Wagons
- Fitment: 2014+ 2500 4x4
- Fitment: 2013+ 3500 4x4
- Compatible with 2.5"-4" Front Lift
- NOT compatible with Stock wheels, Max 5.75" backspace

$795.00
Carli Torsion Sway Bar, Ram Power wagon

Low Mount Steering Stablizer:

- Direct bolt-in replacement
- Corrects left tire pull, adjustable
- Inside the Carli Stainless Stabilizer
- Fitment: 2014+ Ram 2500, 4×4
- Fitment: 2013+ Ram 3500, 4×4

$320.00

Carli Suspension Low Mount Steering Stabilizer, Ram Power Wagon

High Mount Steering Stabilizer:

- Simple, Bolt-in Installation
- Corrects right tire pull, adjustable
- Combines with Low-Mount for opposing stabilization
- Inside the Carli Stainless Stabilizer
- Fitment: 2019+ Ram 2500/3500, 4×4, Including Power Wagon
- Fitment: 2014-18 Ram 2500/3500, 4×4 with 19+ Drag Link

$450.00

Carli Suspension high Mount Steering Stabilizer, ram Power Wagon

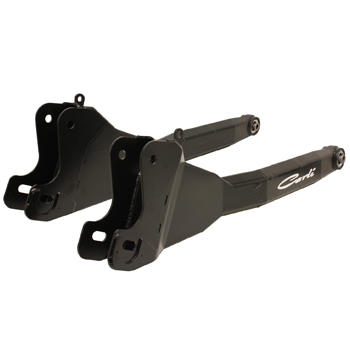

Radius Arm Upgrade:

- Massive Strength Upgrade vs. Stock Arm
- Improved ride quality and control
- Internal X-Bracing & Serviceable 17-4 Stainless Spherical Joints
- 10" Quad Wrap Limit Straps, For 2.5" Leveling Systems
- Fitment: 2014+ Ram 2500, 4×4
- Fitment: 2013+ Ram 3500, 4×4

$1,595.00



Carli Suspension Radius Arm

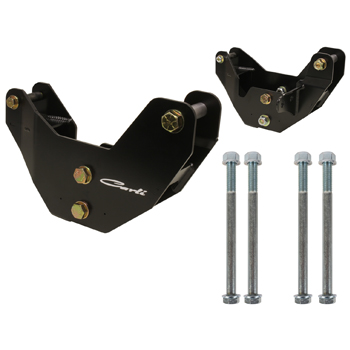

Radius Arm Drop Bracket:

- Maintains critical geometries with 2.5-4" Front Lift
- Heavy-Duty Construction
- Bolt-On installation, no welding required
- Includes: CS-DCM-20-HK - 4 Extended Crossmember Bolts
- Fitment: 2014+ Ram 2500, 4×4
- Fitment: 2013+ Ram 3500, 4×4

$690.00



Carli Suspension Raduis Arm Drop Brackets

Front Differential Guard:

- Protection for your Ring-Gear
- Bolts On In Minutes
- 1/4" Wall Cold-Rolled Steel Construction
- Grade 8 Hardware
- Fitment: 2014+ Ram 2500, 4x4
- Fitment: 2013+ Ram 3500, 4x4
- Power Wagons may require modification to the Diff Guard or Lower Diff Housing.

$210.00

Carli Suspension Front Differential Guard, Ram Power Wagon

Lifetime Warranty Ball joints:

- Set of Upper and Lower Ball Joints
- LIFETIME Advanced-Replacement Warranty
- Copper Plated, Carburized and Dry-Lubed
- Includes a tube of Redline CV2 Grease
- Fitment: 2013+ Ram 3500 4x4
- Fitment: 2014+ Ram 2500 4x4

$895.00

 Carli Suspension Lifetime Warranty Ball joints, Ram Power Wagon
View AllClose

Warranty Information

Carli Suspension provides a limited lifetime product warranty against defects in workmanship and materials from date of purchase to the original purchaser for all products produced by Carli Suspension. Parts not manufactured by, but made to Carli Suspension’s specifications by third party manufacturers will carry a warranty through their respective manufacturer. Carli Suspension’s Limited Lifetime Warranty excludes the following parts which are subject to wear: Bushings, Heim Joints, Uniballs, Limit Straps. Carli Suspension cannot warrant a product’s cosmetic finish due to the varying extreme elements that may be encountered. Any alterations, substitutions, aftermarket parts (directly affecting the part in question), modifications, or improper installation of the product will void this warranty. Carli Suspension’s obligation under this warranty is limited to the repair or replacement of the defective product only. All costs of removal, installation or reinstallation, freight charges, incidental or consequential damage are expressly excluded from this warranty.
