Description

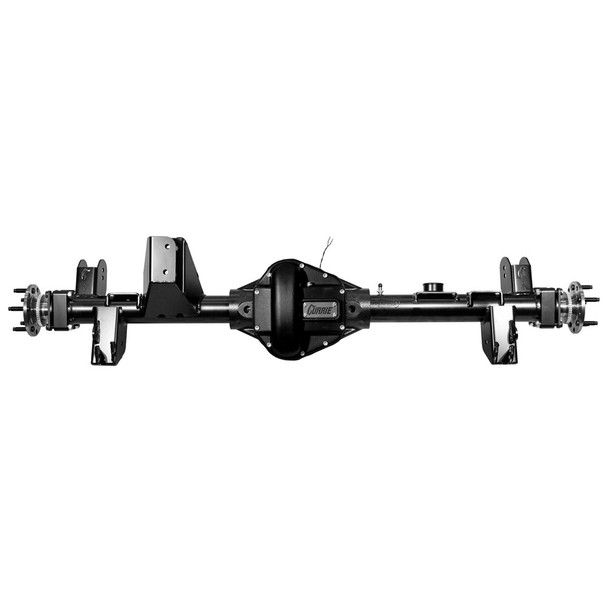

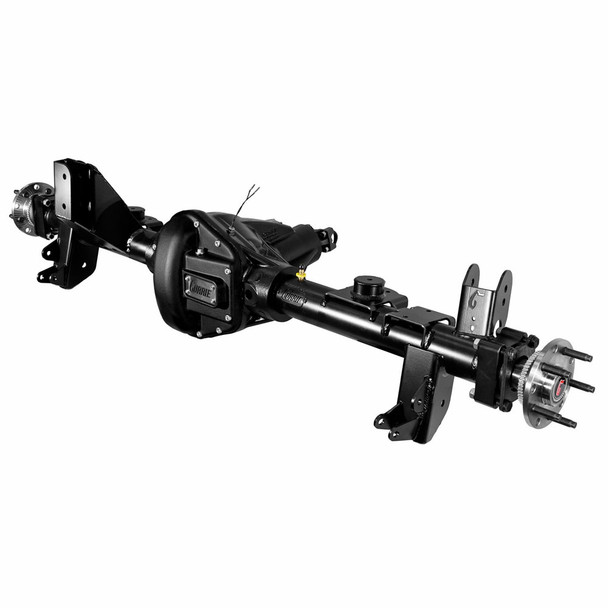

The Currie HD60 Low Pinion Rear Axle is a direct bolt-in upgrade for Jeep Gladiator owners who demand increased strength, durability, and reliability without sacrificing daily drivability. Designed for multi-use commuters, overlanders, tow rigs, and off-road builds, the LP60 delivers a significant performance upgrade over the factory rear axle while maintaining excellent road manners.
Built around low-pinion Dana 60–based gearing, the HD60 features massive 3.5-inch diameter axle tubes and 40-spline axle shafts, providing a dramatic increase in load capacity and long-term durability—ideal for larger tires, added vehicle weight, and towing duties. Despite its heavy-duty construction, the HD60 retains the factory Jeep Gladiator wheel bolt pattern, allowing you to continue running your existing wheels.
Designed as a true bolt-in assembly for 2020+ Jeep Gladiator JT models, the Currie HD60 includes all necessary brackets and mounts pre-installed. Factory rear brakes are retained and transferred to the new axle, simplifying installation and maintaining OEM brake performance. Due to the larger housing and 1350-series U-joint, the factory driveshaft will require modification or replacement to complete the upgrade. CLICK HERE FOR DRIVESHAFT OPTION
The Currie HD60 rear axle is an ideal solution for Gladiator owners looking for a balanced, heavy-duty axle that performs equally well on the highway, trail, and under load.
Details:
- Direct Bolt-in Fit for Gladiator Trucks
- Factory 68-Inch Gladiator Width
- Heavy-Duty Low-Pinion Cast Center Section
- 3.5 x .375-inch Axle Tubes are Twice the Strength of the Stock Tubes
- Currie Extreme 40-Spline Axles
- Choice of Selectable Locker and Gear Ratio
- Currie Heavy-Gauge Laser Cut Brackets
- Pinion Angle Optimized for Stock Height up to 4.5 in. of Lift
- Currie Rock-Proof Nodular Iron Differential Cover
- Upgraded 1350 Pinion Yoke
- Satin Black Powder Coat for Long Lasting Protection
- Retains Stock 5x5 Wheel Bolt Pattern
- Retains the Factory Gladiator Rear Brake Components
Currie LP60 Features:
  |
The low-pinion 60 provides improved gear strength and durability over the stock unit for demanding activities such as Overlanding and towing heavy loads |
|
 |
Large 3.5 in. diameter x .375 in. wall axle tubes (left) are more than two times stronger than the stock axle tubes (right) |
|
 |
40-spline semi-floating axles (right) are the largest and strongest standard axle offering in the industry. Stock JT axle (left) |
|
 |
Axles feature the factory 5x5 wheel bolt pattern, so you can keep those nice wheels |
|
 |
Heavy-duty laser-cut brackets are positioned to achieve the proper pinion angle for vehicles ranging from a stock height up to 4.5" of lift. |
|
 |
Black satin powder coat finish adds long-lasting protection against rust and corrosion to keep your Currie 60 looking its best |
| Vehicle Fitment | 2020 and newer Jeep Gladiator Truck |
| Center Section | Currie LP60 nodular Iron low-pinion center section |
| Gear Set | Standard Dana 60™ low-pinion |
| Pinion Yoke | 1350 u-joint |
| Differential Cover | Currie nodular-iron cover with gasketed fill plug with dipstick, Red |
| Axle Tubes | 3.5 in. diameter x .375 in. wall DOM tube |
| Axle Bearings | Set 80 tapered roller bearing |
| Axles | Currie Performance semi-floating, 40-spline (1.7” diameter) axles with tone rings for ABS/EPS retention |
| Brake Rotors | Not included, reuses the stock Gladiator rear rotors |
| Brake Calipers | Not included, reuses the stock Gladiator rear calipers |
| Suspension Brackets | Heavy gauge 3/16” steel mounting brackets |
| Geometry | Optimized for stock height up to 4” of lift |
| Width | 68-inches between wheel mounting surfaces (stock Gladiator width) |
| Wheel Bolt Pattern | 5 on 5 inch with 14 MM studs (standard Gladiator pattern) |
| Finish | Black satin powder coat |
NOTES
ABS Sensors: The stock axle must be retained and installed on the Currie housing
Brake Components: Retains the stock rear disk brake rotors or calipers; mounting brackets are designed to reuse the stock rotors and calipers from the vehicle.
Wheel Studs: Includes 14 MM (factory size) wheel studs.
Wheel and Tire Size: 17-inch or larger wheels are required for proper clearance of the brake calipers. The maximum recommended tire size is 39-inches for semi-floating axles.
Overall Width: Axle width is 68 inches (Factory width) between wheel mounting surfaces
