Description

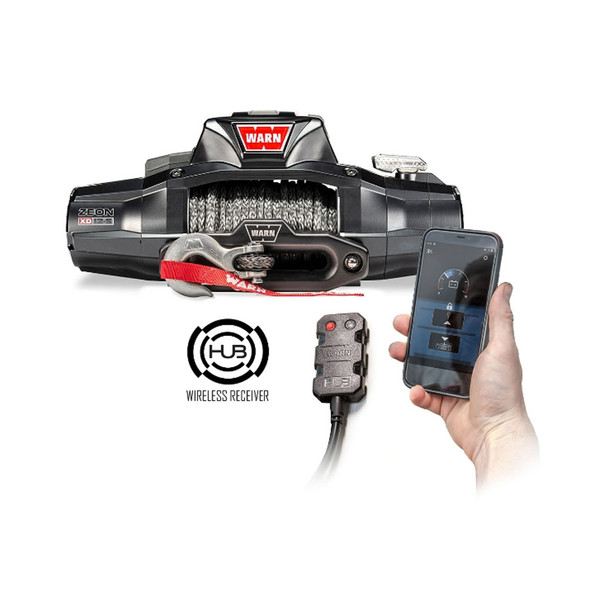

The Warn ZEON XD 10-S Winch delivers unmatched recovery performance with a 10,000 lb pull capacity, making it the ultimate tool for Jeep, SUV, and truck enthusiasts. Redesigned from the ground up, the ZEON XD 10-S combines cutting-edge technology, durability, and reliability to handle the harshest off-road conditions with confidence.
Equipped with 100 feet of 3/8” Spydura synthetic rope, this winch is lightweight, strong, and abrasion-resistant, featuring heat-resistant inner wraps and an added protective sleeve for heavy-duty use. Paired with the WARN HUB receiver and app, you’ll experience wireless control with a 100+ foot range, ensuring seamless operation from a safe distance.
FEATURES & BENEFITS:
- 10,000 lb Pull Capacity: The ideal strength for 4x4 vehicles, Jeeps, trucks, and SUVs.
- Wireless Control: Includes the HUB receiver for 100+ feet of wireless range when used with the WARN HUB app. Comes with a durable, waterproof corded remote (12’ lead).
- Fastest Line Speed in Its Class: New high-efficiency motor and geartrain deliver blazing no-load speeds up to 40 feet per minute.
- Extreme Durability: Waterproof IP68K submersion-rated and IP69K high-pressure spray-rated with advanced O-ring rubber sealing for ultimate protection.
- Built to Withstand Anything: Upgraded UV and corrosion-resistant hardware, impact-resistant full metal armor, and forged black aluminum fairlead for maximum durability and long-lasting performance.
- American Assembled: Engineered, tested, and assembled in Clackamas, Oregon, USA.
- Spydura Synthetic Rope: Strong, lightweight, and easy to handle with enhanced heat and abrasion resistance for rugged recovery scenarios.
- Reliable Electrical System: Features the Albright contactor control and OEM-grade bus bars for efficient, dependable operation.
- Industry-Leading Warranty: Backed by Warn’s limited lifetime mechanical and 7-year electrical warranty, supported by a global service network.
Why Choose the ZEON XD 10-S?
When the trail gets rough, the Warn ZEON XD 10-S Winch is the recovery tool you can trust to get the job done. From fast line speeds to robust waterproof construction, it’s built to perform when you need it most. Engineered with precision, this winch represents the gold standard for off-road enthusiasts who demand reliability, power, and control in every situation.
Order your ZEON XD 10-S today and experience the confidence of a winch designed for the toughest recoveries.
| Rated Line Pull (Single Line) |
10,000lbs (4536 kg) |
| No Load Line Speed |
40 ft/min (12.19m/min) |
| Rated Load Line Speed |
5 ft/min (1.52m/min) |
| No Load Motor Current |
64 Amps |
| Rated load motor current |
458 Amps |
| Motor |
12V DC, series wound (exclusive WARN high-performance design) |
| Zeon Electrical controls |
Contactor |
| Wiring |
Automotive OE-grade buss bars |
| Zeon Corrosion Resistance |
408 hour salt spray |
| Zeon Ingress Protection |
IP68 submersion and IP69K spray testing (entire unit) |
| Remote Control |
Corded remote with LED feedback light, plus bluetooth enabled HUB Wireless Receiver integrated into the control pack |
| Drum diameter/Length |
3.15”/9.0” (80mm/229mm) |
| Geartrain |
3-stage planetary |
| Zeon Gear Ratio |
141:1 |
| Zeon Clutch (freespooling) |
Rotating ring gear with stainless steel clutch lever. Both manual and remote activated operation. |
| Rope |
3/8” x 100’ (9.52mm x 30m) Spydura synthetic |
| Fairlead |
Black anodized, forged aluminum hawse |
| Recommended Battery |
650 CCA minimum for winching |
| Battery leads |
2 gauge, 72” (1.83m) |
| Zeon Finish |
Satin-black powder coat |
| Final point of assembly |
Warn facility in Clackamas, Oregon, USA |
| Warranty |
Limited lifetime mechanical, 7 years electrical |
| Weight |
85lbs (in box) |
