Innovative Products ARB Twin Compressor 4-Tire Air System for Jeep JL / JT
- 15.00 LBS
The Innovative AT Products Jeep JT/JL under the seat ARB twin compressor mount takes all the guesswork out of where to mount it and how to plumb it. This kit also provides a complete 4-tire inflation solution! And with the optional inflation/deflation tool, you can deflate all 4 tires at once and air up all 4 tires at once to an adjustable set point.
Tire inflation (and deflation) is even, consistent, and self-equalizes because all 4 tires are connected at once. Your ARB investment is safe from the elements and heat tucked neatly under the passenger seat.
All air connections are inside the Jeep, so you do not have to open your hood, crawl under your vehicle, or clean dirt/mud/ice/snow off your air connections. You can even close your doors “1-click” with the airlines connected for those cold and rainy days to stay warm and dry inside your Jeep while your tires inflate/deflate.
It is a “zero residual pressure” system. Once you are done inflating your tires, the system returns to a neutral state. There is no pressure in the system that would be subject to expansion and contraction due to changes in temperature / altitude. That means less stress on components and seals.
Only one threaded connection in main supply. That means no pipe tape, no pipe paste, or multiple threaded connections to deal with and less opportunity for leaks in the long run.
No typical bulky and restrictive air connections. Our system uses simple, clean looking, and non-restrictive air connections.
Each air line is 10ft long so you can easily reach your tires or that other vehicle that needs air (because there is always one!).
JL / JT Specific Mounting Brackets:

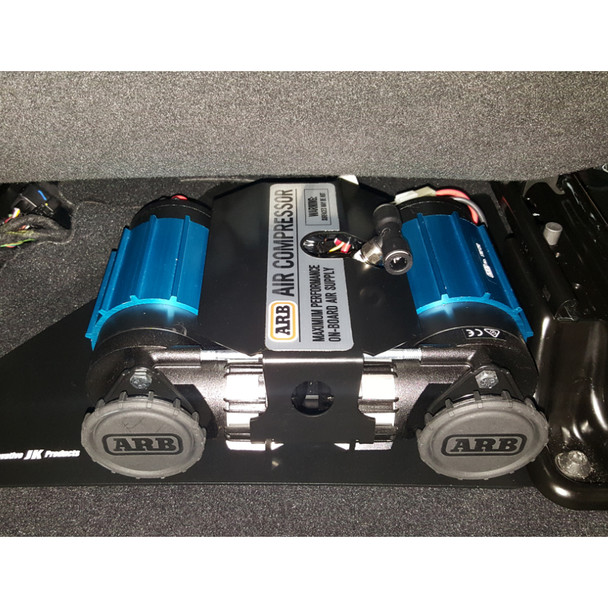

The mounting bracket set has been specifically designed for mounting an ARB Twin Air Compressor in your Jeep JL under the passenger seat away from all the elements. The brackets mount to the stationary part of the seat frame and does not interfere or limit any of the seat movement (the same is the case for the seat brackets for the air connections). All the mounting brackets are laser cut and CNC bent aluminum to exact specifications and satin black powder coated for a clean, long lasting finish.
Air Line System:

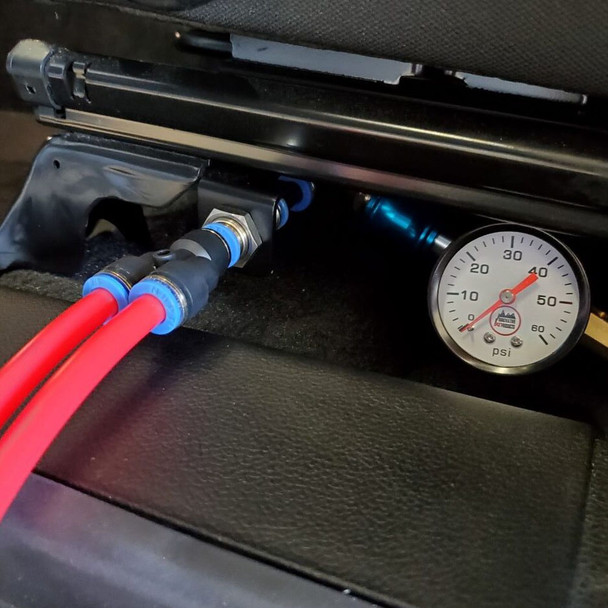

The air line is a simple plug and play system. All you have to do is connect the 2 Y-Connectors on each side of the Jeep, clip on the air chucks, and turn on the compressor. Typical inflation times for all 4 tires at once from 10-30psi at sea level are:
33’s – 4 min
35’s – 5 min
37’s – 7 min
40’s – 10 min
44’s – 12 min
2018-Present Jeep JL Unlimited (4 Door) / JL (2 Door) / JT Gladiator – All Models
For Use With
Mounting of an ARB Twin Air Compressor Model CKMTA12 for use with 4-Tire Inflation
1 Bracket for under seat mounting of ARB Compressor
2 Brackets for Air Connections
All Bolts / Nuts
All Pre-Cut Tubing for Air Supply
4 Air Lines (10 ft each) with Connectors, 4 Haltec Air Chucks (not shown in pictures), and Custom Storage Bag
All Wiring Terminals / Connectors
Step-by-Step Installation Instructions with Color Photos
Includes Jeep JL / JT specific details for connecting wires from ARB harness
Also includes specific wiring details if using an sPOD or equivalent
Optional Air Down / Air Up Tool, if selected
What you will have to Supply Separately
ARB Twin Compressor (CKMTA12) sold separately – See IJKP-24-ARB for a Package Deal with Compressor
A mounting solution for the ARB supplied compressor switch.
Note: Not for use with running Air Lockers in addition to tire inflation.
