Description
The Baja Designs Squadron 2.0 Pro LED Light Pod Pair is a complete evolution of one of the most proven compact lights in the off-road space. Fully redesigned from the ground up, the 2.0 Pro steps up output, efficiency, and beam control with an impressive 5,921 lumens at 65 watts—delivering a noticeable jump in usable light over the previous generation.
At the heart of the upgrade is an all-new optical system that pushes light farther downrange while maintaining a wide, controlled spread. The result is a clean beam pattern with minimal spill, giving you more effective illumination exactly where you need it—whether you’re crawling technical terrain, opening it up in the desert, or putting in long miles after dark.
The updated gloss black aluminum housing brings a more aggressive, modern look while maintaining the durability Baja Designs is known for. Internally, improvements to the uService® system include secure clip-in reflectors for easier lens swaps and a redesigned gasket that enhances sealing against dust, moisture, and harsh conditions.
Additional upgrades include a heavy-duty 4-pin Deutsch-style connector for reliable wiring, a redesigned mounting bracket with increased vertical adjustability for precise aiming, and a fully integrated color-selectable backlight with nine color options to match your build.
HIGH OUTPUT PERFORMANCE
The Squadron 2.0 Sport produces 3,200 lumens at 30W. Next-generation optics throw light farther and wider while minimizing wasted spill, delivering more usable illumination exactly where you need it.
For drivers demanding maximum output, the Squadron 2.0 Pro throws 5,921 lumens at 65W a 41% increase in power over previous generation. Both configurations operate on 12-36V systems and are available in harness and non-harness pair options.
COLOR SELECTABLE BACKLIGHT
The Squadron 2.0 features an integrated 9-color selectable backlight. Drivers can toggle between red, green, blue, magenta, cyan, amber, yellow, pink, and white, all configurable through the included harness. Color settings are retained when the light is powered off, so your setup is always ready when you are.
IMPROVED USERVICE FUNCTIONALITY:
Updated uService® components include clip-in reflectors that stay secure during lens swaps and a new gasket design that improves sealing and long-term protection from the elements. A rugged 4-pin Deutsch connector replaces the previous standard for enhanced durability.
Every detail has been upgraded while maintaining the proven reliability that defines Baja Designs.
CLEARVIEW OPTICAL CONTROL
The Squadron 2.0 was engineered from from the ground up drawing inspiration from the iconic Squadron and taking it to be the next level through aesthetics, performance and useability. The Squadron 2.0 Sport features a modern exterior, next‑generation optics, RGB back-light and new bracket design for increased vertical adjustability for precise aiming.
CONNECTORS TO HANDLE ABUSE
4-pin Deutsch-style connectors are now standard on every wire harness — weatherproof, vibration-resistant, and rated for the kind of punishment that kills cheap connectors.
Built for consistent performance in demanding environments, the Squadron 2.0 Pro sets a new standard for compact auxiliary lighting. Like all Baja Designs products, it’s backed by a 30-day satisfaction guarantee and a limited lifetime warranty.
Squadron 2.0 PRO Key Features:
- Refined beam pattern for increased distance, wider coverage, and reduced light spill
- Color-selectable backlight with 9 color options
- Improved uService® with secure clip-in reflectors
- Upgraded gasket design for enhanced weather sealing
- Redesigned mounting bracket with increased vertical adjustability
- Durable 4-pin Deutsch-style connector
Squadron 2.0 PRO Specifications:
Lumens: 5,921
Power Draw: 65W / 4.7A @ 13.8V
Voltage Range: 12–32V
IP Rating: IP69K
Beam Pattern Options (ELS™ Performance):
Spot Clear: 86° / 6.1 / 454 / 4930
Driving Combo Clear: 128° / 7.4 / 403 / 4955
Wide Cornering Clear: 132° / 7.6 / 159 / 4946
Work/Scene Clear: 148° / 8.0 / 64 / 4575
What’s Included:
With Harness Kit:

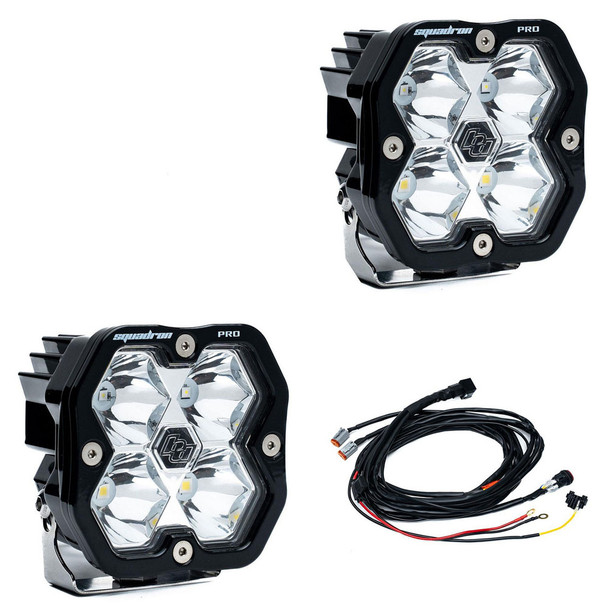

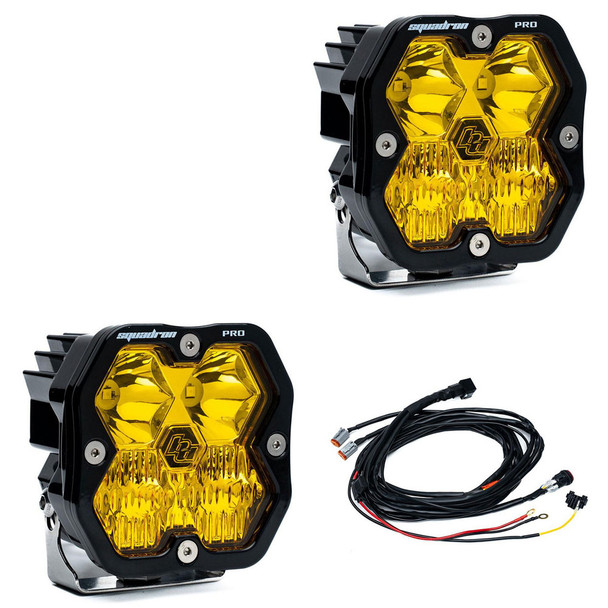

- (2) Squadron 2.0 Pro LED Light Pods
- (1) Wiring Harness
- Mounting Hardware
Without Harness Kit:
- (2) Squadron 2.0 Pro LED Light Pods
- Mounting Hardware
