Description

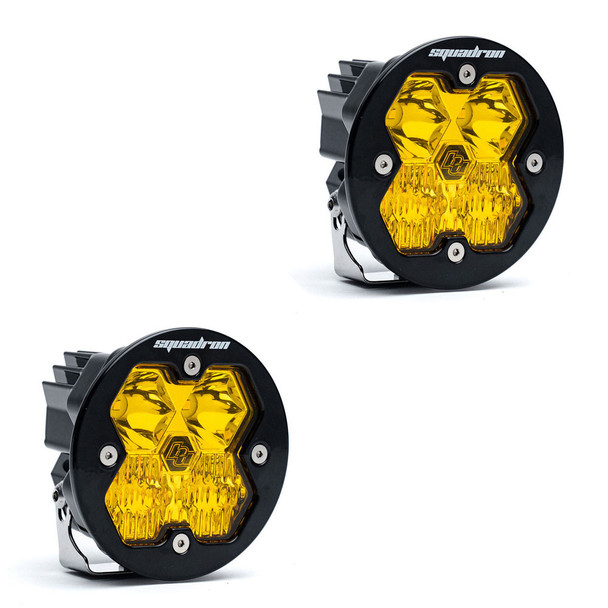

The Baja Designs Squadron R 2.0 Sport LED Light Pod Pair represents a full redesign of one of the most trusted compact off-road lights on the market. Built from the ground up with updated styling, improved optics, and increased output, this next-generation light delivers 3,200 lumens at just 30 watts—offering a noticeable boost in performance, efficiency, and beam control over its predecessor.
At the core of the Squadron R 2.0 Sport is a refined optical system engineered to project light farther downrange while maintaining a wide, usable spread. The result is a clean, controlled beam pattern that minimizes wasted light and keeps your focus exactly where it matters—whether you’re crawling technical trails, pushing through desert terrain, or driving at speed after dark.
The updated gloss black aluminum housing gives the light a more aggressive, modern look while maintaining the durability Baja Designs is known for. Internally, key upgrades include improved uService® components, featuring secure clip-in reflectors for easier lens swaps and a redesigned gasket that enhances weather resistance and long-term reliability.
Additional refinements include a new adjustable mounting bracket for precise vertical aiming, a durable 4-pin Deutsch-style connector for dependable wiring connections, and a fully integrated color-selectable backlight with nine color options—allowing you to match your lighting setup to your vehicle’s style.
HIGH OUTPUT PERFORMANCE
The Squadron 2.0 Sport produces 3,200 lumens at 30W. Next-generation optics throw light farther and wider while minimizing wasted spill, delivering more usable illumination exactly where you need it.
For drivers demanding maximum output, the Squadron 2.0 Pro throws 5,921 lumens at 65W a 41% increase in power over previous generation. Both configurations operate on 12-36V systems and are available in harness and non-harness pair options.
COLOR SELECTABLE BACKLIGHT
The Squadron 2.0 features an integrated 9-color selectable backlight. Drivers can toggle between red, green, blue, magenta, cyan, amber, yellow, pink, and white, all configurable through the included harness. Color settings are retained when the light is powered off, so your setup is always ready when you are.
IMPROVED USERVICE FUNCTIONALITY:
Updated uService® components include clip-in reflectors that stay secure during lens swaps and a new gasket design that improves sealing and long-term protection from the elements. A rugged 4-pin Deutsch connector replaces the previous standard for enhanced durability.
Every detail has been upgraded while maintaining the proven reliability that defines Baja Designs.
CLEARVIEW OPTICAL CONTROL
The Squadron 2.0 was engineered from from the ground up drawing inspiration from the iconic Squadron and taking it to be the next level through aesthetics, performance and useability. The Squadron 2.0 Sport features a modern exterior, next‑generation optics, RGB back-light and new bracket design for increased vertical adjustability for precise aiming.
CONNECTORS TO HANDLE ABUSE
4-pin Deutsch-style connectors are now standard on every wire harness — weatherproof, vibration-resistant, and rated for the kind of punishment that kills cheap connectors.
Built for consistent performance in demanding environments, the Squadron 2.0 Pro sets a new standard for compact auxiliary lighting. Like all Baja Designs products, it’s backed by a 30-day satisfaction guarantee and a limited lifetime warranty.
Built for consistent performance in demanding conditions, the Squadron R 2.0 Sport continues to set the standard for compact auxiliary lighting. Like all Baja Designs lighting systems, it’s backed by a 30-day satisfaction guarantee and a limited lifetime warranty.
Key Features:
- Refined beam pattern for increased distance, wider coverage, and reduced light spill
- Color-selectable backlight with 9 color options
- Clip-in reflector system for improved uService® lens changes
- Enhanced gasket design for superior weather sealing
- Redesigned mounting bracket with increased vertical adjustability
- 4-pin Deutsch-style connector for reliable, durable wiring
Specifications:
- Lumens: 3,200
- Power Draw: 30W / 2.2A @ 13.8V
- Voltage Range: 12–32V
Beam Pattern Options (ELS™ Performance):
- Spot Clear: 84° / 5.1 / 398 / 2645
- Driving Combo Clear: 106° / 6.8 / 296 / 2670
- Wide Cornering Clear: 118° / 7.4 / 128 / 2664
- Work/Scene Clear: 136° / 7.9 / 47 / 2475
What’s Included:
With Harness Kit:
(2) Squadron R 2.0 Sport LED Light Pods
(1) Wiring Harness
Mounting Hardware
Without Harness Kit:
(2) Squadron R 2.0 Sport LED Light Pods
Mounting Hardware
