Description
Carry your bike securely without giving up valuable truck-bed cargo space with the Rebel Off Road XPLOR Bed Rack Bike Mount.
Designed specifically for the XPLOR Bed Rack system, the Bike Mount positions your bicycle along the side of the rack while keeping the truck bed available for camping gear, storage cases, coolers, recovery equipment, and other cargo.
The latest XPLOR Bike Mount is designed specifically around our V2 MOLLE 2.0 Aluminum Carrier Plates and is also compatible with V1 XPLOR Carrier Plates using the available V1 adapter.
Its adjustable design accommodates different bicycle sizes and mounting positions, while an included rear tire strap and secondary stabilization strap help control bike movement during both highway and off-road travel.

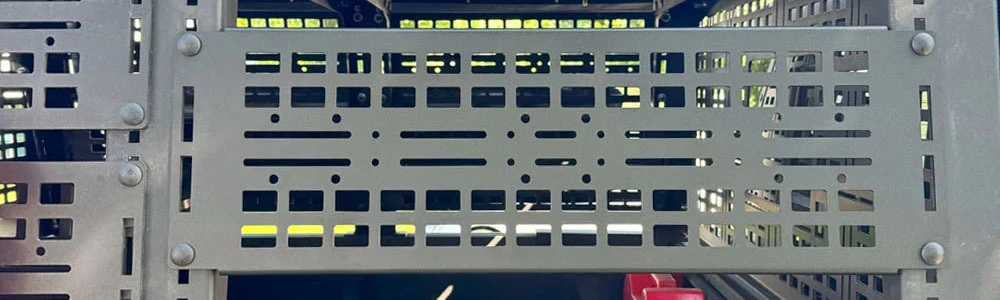

Designed for XPLOR V2 MOLLE Carrier Plates
The XPLOR Bike Mount is designed specifically to integrate with our current V2 MOLLE 2.0 Aluminum Carrier Plates, creating a clean and secure mounting point along the side of your XPLOR Bed Rack.
The V2 mounting system allows you to position your bicycle outside the primary cargo area while maintaining access to valuable space inside the truck bed.

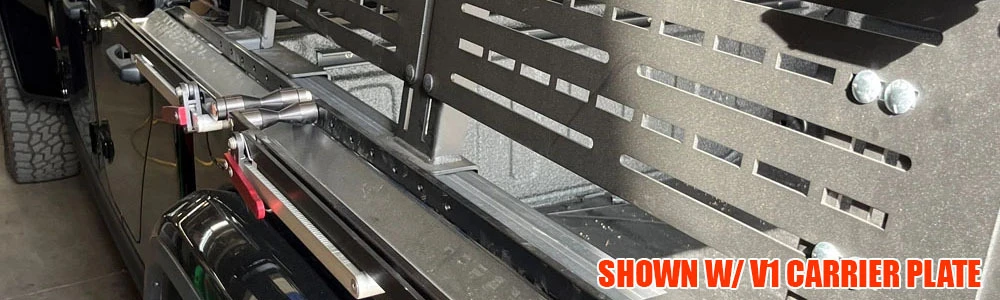

V1 XPLOR Carrier Plate Compatible
Still running the original XPLOR Carrier Plates? We've got you covered. The XPLOR Bike Mount can also be installed on V1 XPLOR Carrier Plates using our V1 adapter. This allows owners of earlier XPLOR systems to use the updated Bike Mount without replacing their existing carrier plates.
V1 Carrier Plates require the appropriate V1 adapter for installation.

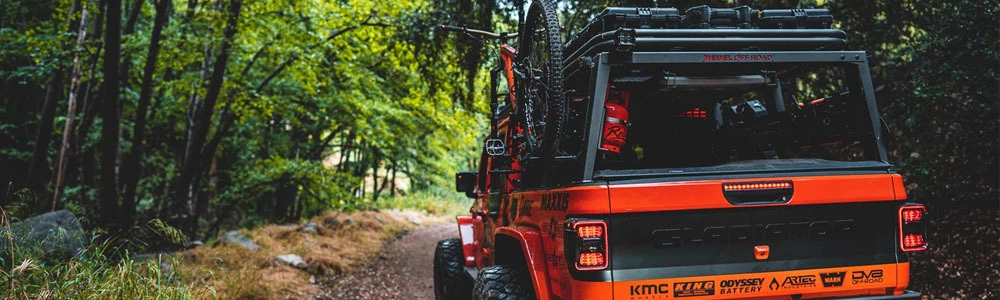

Carry Your Bike Alongside Your XPLOR Bed Rack
Transporting a bicycle shouldn't mean filling the truck bed or sacrificing the cargo space you built your XPLOR system to create.
The XPLOR Bike Mount positions your bike vertically along the side of the bed rack, keeping it secure and accessible while preserving valuable space inside the truck bed.
This side-mounted configuration is especially useful for overland and camping setups where the bed is already occupied by storage cases, coolers, camping equipment, recovery gear, or other equipment.
Compatible with XPLOR Full & Half Height Bed Racks
The Bike Mount can be used with both XPLOR Full Height and Half Height Bed Rack configurations.
Its adjustable design allows the bike position to be configured around your particular rack, bicycle, rooftop tent, and cargo setup.
Adjustable for Different Bike Sizes
Different bikes require different mounting positions. The XPLOR Bike Mount is adjustable to accommodate variations in bicycle height and width, allowing the system to be configured around your particular bike.
The adjustable mounting position also provides flexibility when combining the Bike Mount with rooftop tents and other equipment installed on your XPLOR Bed Rack.
Designed to Work Around Rooftop Tents
The adjustable mounting position allows the bicycle to be positioned around many popular rooftop tent installations.
Because rooftop tent dimensions, overhang, mounting height, bicycle frame geometry, and rack configurations vary, always verify clearance between the bicycle, rooftop tent, vehicle body, and other accessories before driving.
Two-Point Bike Stabilization
The XPLOR Bike Mount includes two retaining straps to help keep your bicycle secure during travel.
One strap secures the rear tire to the Bike Mount, while the second can be used to stabilize the bicycle against the XPLOR Bed Rack.
This additional stabilization point helps reduce side-to-side movement and sway, particularly when traveling over uneven roads and off-road terrain.
Choose Your Front Fork Mount
The front mounting platform allows you to select a fork-mount solution appropriate for your bicycle.
Rebel Off Road recommends compatible RockyMounts fork-mount systems, but you're also welcome to use another compatible bolt-on fork mount that fits the XPLOR mounting platform.
Fork mount is sold separately unless specifically selected or included with your configuration.
RockyMounts DropTop Thru-Axle Compatibility
For modern mountain bikes and other thru-axle bicycles, the RockyMounts DropTop provides a locking hard-mount solution for securing the front fork.
- 12 x 100mm
- 12 x 110mm
- 15 x 100mm
- Boost 15 x 110mm
- 20 x 110mm
Interchangeable shims allow the mount to accommodate multiple axle configurations, while the locking T-bolt provides additional security at the front fork.
The RockyMounts DropTop is rated to carry one bicycle up to 45 lbs.
Quick-Release Fork Compatibility
Bikes using a traditional 9 x 100mm quick-release front fork can be accommodated using the appropriate RockyMounts quick-release dummy axle system.
Compatible with Select 1UP Bike Mounts
The XPLOR Bike Mount can also be configured with compatible 1UP bike mounting systems.
When selecting a compatible 1UP mounting system, use the Flush Mount option.
Always verify the mounting pattern, bicycle weight, and installation requirements of the specific bike mount before installation.
Built for Off-Road Travel
The XPLOR Bike Mount was designed for trucks that travel beyond paved roads.
Rear tire retention and the secondary stabilization strap help control bicycle movement as the vehicle travels across uneven terrain, reducing unnecessary movement between the bicycle and bed rack.
As with any externally mounted equipment, straps, fasteners, and mounting hardware should be inspected regularly and checked before off-road travel.
Premium Textured Black Powder Coat
Each XPLOR Bike Mount is sandblasted and pre-treated using a four-stage iron phosphate wash with a deionized water rinse.
A zinc-rich primer basecoat is applied before the final black fine-texture powder-coated finish, providing a durable coating designed for demanding off-road and outdoor environments.
Made in the USA
The Rebel Off Road XPLOR Bed Rack Bike Mount is proudly Made in the USA with U.S. steel.
It's designed as part of the modular XPLOR Bed Rack accessory system, allowing bikes and adventure equipment to be carried outside the primary truck-bed cargo area.
What's Included
- Rebel Off Road XPLOR Bed Rack Bike Mount
- Rear tire retaining strap
- Secondary bike stabilization strap
- Required XPLOR Bike Mount mounting hardware
V1 Carrier Plate installations require the V1 adapter.
Front fork mount is sold separately unless otherwise specified.
Features
- Designed specifically for V2 XPLOR MOLLE 2.0 Aluminum Carrier Plates
- Compatible with V1 XPLOR Carrier Plates using the V1 adapter
- Designed for Rebel Off Road XPLOR Bed Racks
- Compatible with XPLOR Full Height and Half Height racks
- Adjustable for different bicycle heights and widths
- Side-mounted design preserves truck-bed cargo space
- Designed to accommodate many rooftop tent configurations
- Includes rear tire retaining strap
- Includes secondary stabilization strap to help reduce bike sway
- Accepts compatible bolt-on front fork mounts
- Compatible with RockyMounts thru-axle and quick-release solutions
- Compatible with select 1UP bike mounts using the Flush Mount option
- Black fine-texture powder-coated finish
- Made in the USA with U.S. steel
Carrier Plate Compatibility
- V2 MOLLE 2.0 Aluminum Carrier Plates: Directly compatible and the primary design application
- V1 XPLOR Carrier Plates: Compatible using the V1 Carrier Plate Adapter
Installation
For current V2 MOLLE 2.0 Carrier Plates, install the XPLOR Bike Mount using the designated mounting locations and supplied hardware.
For V1 XPLOR Carrier Plates, install the Bike Mount using the appropriate V1 adapter.
Once the Bike Mount is positioned, install your compatible front fork mount, secure the rear tire with the supplied retaining strap, and use the secondary strap to stabilize the bicycle against the XPLOR Bed Rack.
Before driving, verify that all mounting hardware and straps are secure and that the bicycle has adequate clearance from the vehicle body, rooftop tent, tires, and other accessories.
5-Year Rebel Off Road Warranty
Rebel Off Road Engineering products are backed by our 5-year warranty against defects in materials, workmanship, and components that fail under normal use.
Bring Your Bike Without Giving Up Your Bed
Whether you're heading out for a weekend of mountain biking or building a truck that needs to carry bikes alongside camping and overland equipment, the XPLOR Bed Rack Bike Mount keeps your bicycle secure without taking over the truck bed.
With direct V2 Carrier Plate integration, V1 compatibility through the available adapter, adjustable positioning, multiple fork-mount options, and two-point stabilization, the XPLOR Bike Mount gives both current and original XPLOR owners a purpose-built way to bring their bikes along.
Dream. Build. Rebel.
