Description

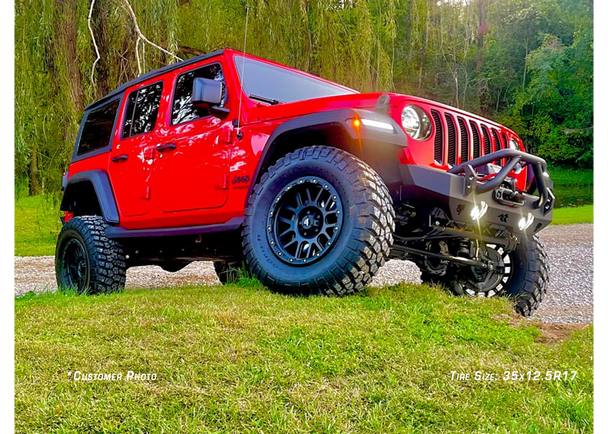

The Rock Krawler 2.5" Adventure Mid-Arm System is specifically designed for Sport and Sahara owners who want a complete system, bolt-in installation, and the best articulation of any MID-ARM kit on the market.
Our system proves its durability and off-road performance every time you hits the streets or trail! The Term, "Adventure" comes from the inclusion of 2 non-adjustable control arms with our 100% Service Free Adventure Series joints installed at each end. Our industry leading, Adventure series mid-Arms feature 35 degrees of misalignment when paired with our Adventure series Joints at the frame connection and at the axle. The inherent bind in a factory JLU control arm is greatly reduced. The arm is longer than the OEM control arm and allows you to correct the JLU's caster up front.
Driving you home with the most comfortable ride possible in a Wrangler, are our TRIPLE-RATE coils. All 4 coils work together to achieve excellent on-road comfort that we feel is better than the OEM linear rate springs. The coil itself is built with the proper "Free-length" for off-road articulation and stays firmly seated in the coil bucket (as long as a proper length shock is installed), and overall a very controlled reaction to bumps, rocks, sand, mud and whatever else you can manage to throw at them! All Rock Krawler JL systems include correction pads that reduce the spring bow inherent in the factory set up. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on road handling. When we design a system, our goal is to provide you with the most comprehensive solution and the best geometry, install exceptional value, and be the foundation for every adventure whether it be on the Street, In tow, or down a Trail! Thank you for considering Rock Krawler Suspension.
Benefits:
- Complete Bolt-in System
- Excellent highway ride and handling
- The best off-road ability of all Mid Arm Systems
- Improved Rear Roll Center
- Tuned Triple-rate Coils
- Spring Correction Seats
- Vehicle Lean Correction
- Upgradable to RK Long-arm System
- Best Technical Support in the Industry
- Jeep Remains Level on All 4 Corners
System Includes:
(4) Triple-rate Coil Springs
(2) Front Set-length Lower Control Arms
(2) Front Spring Pads
(1) Adjustable Front Track Bar
(2) Rear Spring Pads
(2) Set-length Rear Sway Bar Links
(1) Bolt-on Rear Track Bar Relocation Bracket
SHOCKS:
All RRD Shocks and Coilovers are Designed and Built in-house
Generic Front Shock Length – 16.8” Collapsed/ 27.3” Maximum Extended
Generic Rear Shock Length – 17.8” Collapsed/ 29.31” Maximum Extended
Bilstein 5100 Shocks
A Great Pairing with Our Multi-rate Coil Springs
Maintenance Free
RRD 2.25" IFP Shocks
2.25” O.D. Military Grade Hard Anodized Fluted Aluminum Shock Body
Cooling Surface Area of a 2.5” Shock
3/4” 17-4 PH Stainless Steel, Hard Chrome Plated and Polished Shaft
Billet Aluminum Valve Circuit and Components
Dual DU Shaft Bearings and Double Redundant Sealing Methods
Built in-house
Serviceable/Rebuildable/Revalveable
Wheel Fitment:
Sport and Overland Wheel Fitment Recommendations
37”/38” Tall Tires - Recommend 3.5” of Back Spacing
Mojave Fitment Recommendations
37” Tall Tires – Recommend 4.5” of Back Spacing
40” Tall Tires – Recommend 3.5” of Back Spacing
Tire Fitment:
Sport and Overland with Full OEM Fenders
37” Tall Tires (3” Bump Stop Height Recommended)
Sport and Overland with Trimmed or High Lined OEM Fenders
38” Tall Tires (3” Bump Stop Height Recommended)
Mojave with Full OEM Fenders
37”/38” Tall Tires (3” Bump Stop Height Recommended)
Mojave with Trimmed or High Lined OEM Fenders
40” Tall Tires (3” Bump Stop Height Recommended)
General Notes:
All lift heights based on Rubicon models for standard style build (i.e. front bumper and winch, rear bumper and full size spare).
XR Package does not require OUR raised rear track bar bracket, the factory axle has a raised rear trackbar bracket, and for OUR systems that do not have a rear trackbar one must be added.
If building with a spare delete we recommend dropping 1” in coil lift height for the rear.
If building an overland or heavily up-fitted build in the back, we recommend upsizing 1” in coil lift height for the rear.
We recommend a new front driveshaft if you plan to off-road routinely.(Adam's Driveshaft, Tom Woods, J.E. Reel)
