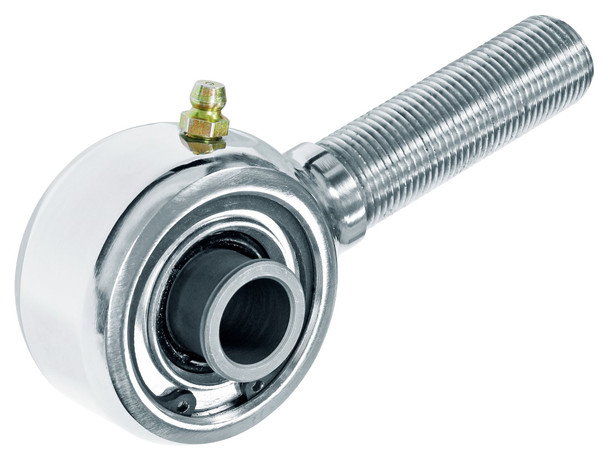

RockJock® CE-9112SSN75-16 - Narrow 2" Johnny Joint®, Polished Stainless Steel, 3/4" RH Thread (1.800" x .625" Ball)

SKU:
CE-9112NSSB75-16
Availability:
Non Stocking Item- Lead Times Vary Based On Availability
Weight:
1.00 LBS
$87.00

Description

RockJock® polished stainless steel 2" Johnny Joint® rod ends are here! Give that high end chassis build in your hot rod, muscle car, off road vehicle, or anything else, that little bit of extra detail without having to worry about chrome! Heat treated forged stainless steel construction provides the perfect base for a beautiful polish! This Johnny Joint® features our 2" narrow style joint with a .625" thru bolt hole, a 1.800" mounting width, 2 1/4" of 3/4"-16 right hand threads on the shank, and is greaseable through the outer shell. Sold each.

NOTE: Any 2" Johnny Joint® ball center that we offer will fit in this joint! If you need another mounting width and thru-hole size, just ask us!

Body Type Stainless Steel (Threaded)
Body Material Forged Stainless Steel, Heat Treated
Body Finish Polished
Body Series 2 inch OD, Narrow Body
Body Width 1.2 inches
Thread Size 3/4 inch, 16 TPI
Thread Direction Right Hand
Shank Length 2 1/4 inch
Mount Width 1.800 inches
Hole Diameter .625 inch (5/8)
Misalignment 25° Total
Lubrication Method External zerk fitting located on joint body
