Description

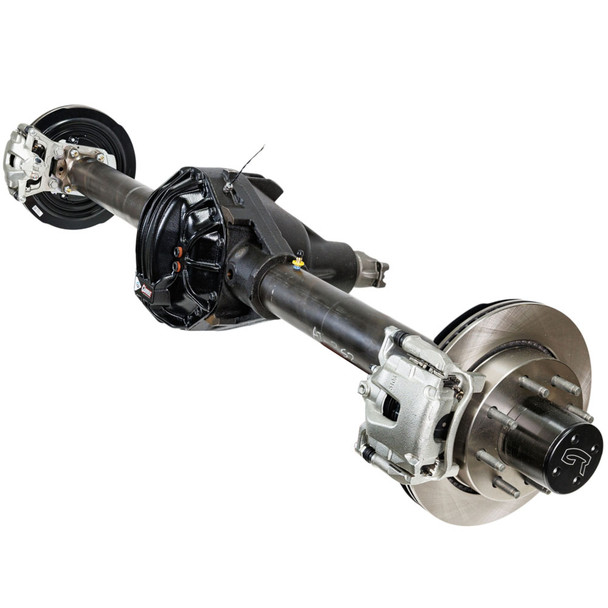

Built for extreme off-road performance, oversized tires, and demanding heavy-duty applications, the Currie 80 Low-Pinion Full-Float Rear Axle Assembly delivers exceptional strength for Jeep Gladiator JT builds that push beyond factory axle capabilities.
Featuring a massive 11.25-inch Dana 80 low-pinion ring gear, 37-spline pinion, and 40-spline full-floating 4340 chromoly axle shafts, the Currie 80 is engineered to handle the demands of 40-inch and larger tires. Its heavy-duty construction makes it an ideal upgrade for serious rock crawlers, heavily equipped overland rigs, and custom Gladiator builds.
Available in 70-inch or 72.5-inch widths, with fully bracketed or non-bracketed housing options, the Currie 80 provides the flexibility needed for both lifted Gladiators and custom suspension configurations.
Features & Benefits
- Massive 11.25-Inch Ring Gear: Dana 80-series low-pinion differential provides exceptional strength and durability for demanding off-road applications.
- 37-Spline Pinion: Heavy-duty low-pinion gear design built to handle increased torque and drivetrain loads.
- 40-Spline Full-Floating Axle Shafts: Heat-treated 4340 chromoly shafts measuring 1.7 inches in diameter deliver outstanding strength.
- Heavy-Duty Axle Tubes: Massive 4-inch diameter DOM steel tubing with .375-inch wall thickness helps resist bending under extreme loads.
- Chromoly Floater Spindles: 2.5-inch diameter 4140 chromoly spindles provide additional strength and durability.
- Full-Floating Hub Design: Currie Performance hubs feature 40-spline drive flanges and integrated tone rings for ABS and ESP retention.
- Factory Brake Caliper Compatibility: Designed to utilize factory Jeep Gladiator rear brake calipers with 13.75-inch vented rotors.
- Optimized Suspension Geometry: Fully bracketed housings feature 3/16-inch steel brackets and 5 degrees of pinion angle to help reduce driveshaft operating angles on lifted vehicles.
- Multiple Axle Widths: Available in 70-inch and 72.5-inch widths measured between wheel mounting surfaces.
- 8-Lug Wheel Bolt Pattern: Heavy-duty 8-on-6.5-inch bolt pattern with 9/16-inch wheel studs.
- Heavy-Duty Differential Cover: Nodular-iron differential cover with integrated fill and drain plugs.
- Finish Options: Fully bracketed housings feature satin black powder coating, while non-bracketed housings are supplied in raw steel.
Available Axle Configurations
- 70-Inch Width - Fully Bracketed, Satin Black Powder Coat
- 70-Inch Width - Without Brackets, Raw Steel
- 72.5-Inch Width - Fully Bracketed, Satin Black Powder Coat
- 72.5-Inch Width - Without Brackets, Raw Steel
Currie 80 Technical Specifications
- Manufacturer: Currie Enterprises
- Axle Series: Currie 80
- Vehicle Application: Jeep Gladiator JT
- Center Section: Dana 80-Series Nodular-Iron Low-Pinion
- Gear Set: Standard Dana 80 Low-Pinion
- Ring Gear Diameter: 11.25 Inches
- Pinion: 37-Spline
- Pinion Yoke: 1350 U-Joint
- Differential Cover: High-Strength Nodular Iron with Fill and Drain Plugs
- Axle Tubes: 4-Inch Diameter x .375-Inch Wall DOM Steel
- Axle Shafts: 40-Spline, 1.7-Inch Diameter, 4340 Heat-Treated Chromoly
- Floater Spindles: 2.5-Inch 4140 Chromoly
- Floater Hubs: Currie Performance with 40-Spline Drive Flanges
- ABS / ESP: Integrated Hub Tone Rings
- Brake Calipers: Factory Jeep Gladiator Rear Calipers
- Brake Rotors: 13.75-Inch Vented
- Suspension Brackets: Heavy-Duty 3/16-Inch Steel (Bracketed Models)
- Pinion Angle: 5 Degrees (Bracketed Models)
- Available Widths: 70 or 72.5 Inches (WMS to WMS)
- Wheel Bolt Pattern: 8 x 6.5 Inches
- Wheel Studs: 9/16 Inch
- Finish: Satin Black Powder Coat (Bracketed) / Raw Steel (Non-Bracketed)
Important Fitment & Installation Notes
- Designed for Jeep Gladiator JT rear axle applications.
- Available in fully bracketed configurations for lifted vehicles or non-bracketed housings for custom suspension installations.
- Requires wheels compatible with the 8-on-6.5-inch bolt pattern.
- Equipped with a 1350-series pinion yoke. Verify driveshaft compatibility before installation.
- Integrated tone rings support factory ABS and ESP functionality when properly configured.
- Verify brake system compatibility, axle width, gear ratio, and suspension configuration before ordering.
- Non-bracketed housings are supplied unfinished and require appropriate corrosion protection after fabrication.
Note: This is a LOW-PINION Dana 80-series rear axle assembly. Confirm all axle configuration options, drivetrain requirements, and vehicle compatibility before purchasing.
