Description

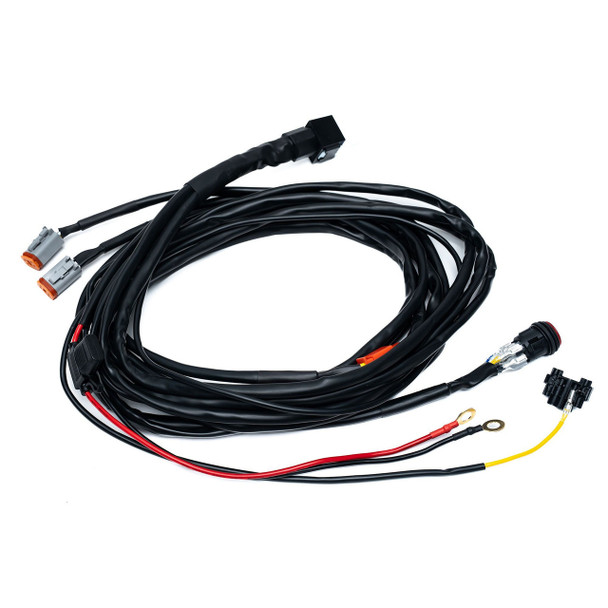

This harness will power the new Squadron 2.0 LED lights. These 2 lead, 4-pin Deutsch-style 2-light harness with 3 position toggle switch; supports backlight, direct battery connection, and can support a maximum of 2 Squadron 2.0 Pros or 5 Squadron 2.0 Sports (with appropriate splitter harnesses) on each lead. Each connector is rated 170 Watts max. The entire harness is rated for 270 Watts max.
Intended use: Dual lead on-off harness, connected to battery, with backlight integration
Offered in direct to battery or Factory (OEM) upfitter connection
Max Power:
270 Watts (MAX Amount)~20 amps @ 13.5V
170 Watts per connector ~13 amps @13.5V
Max Squadron 2.0 Sport: 2 to 8 w/ splitters
Max Squadron 2.0 Pro: 2 to 4 w/ splitters
Leads: 2
Switch: 3/4" 3-Position Switch
Backlight integration: Yes, switch and trigger
Battery to Relay Length:24" (2 Ft.)
Relay to Switch Length:108" (9 Ft.)
Light Branch Length: 96" (8 Ft.), 96" (8 Ft.)
