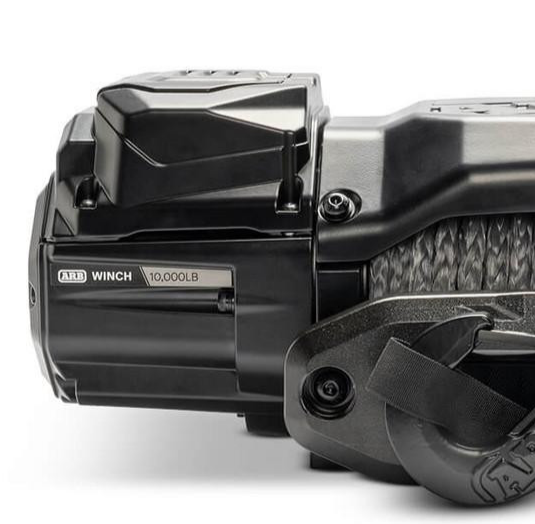

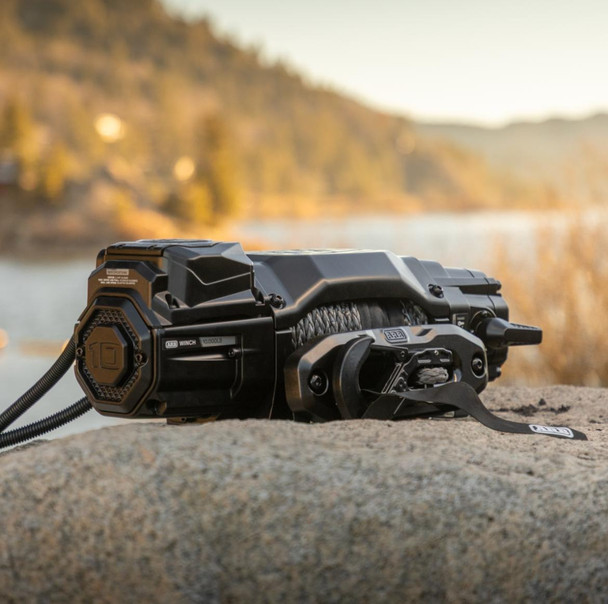

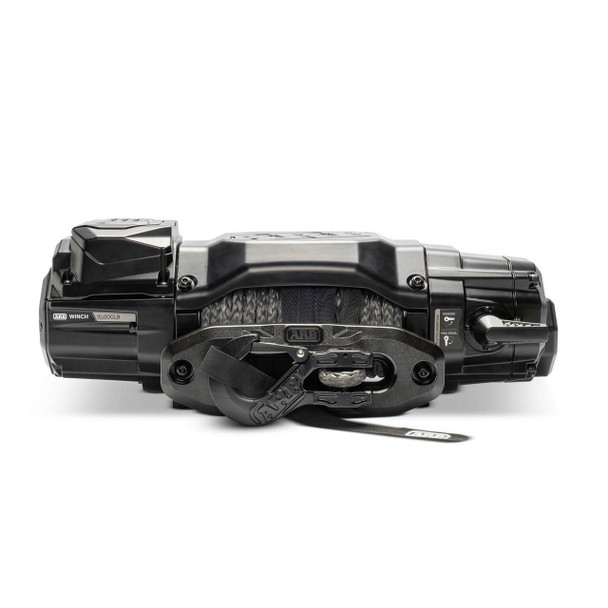

ARB 10,000lb Winch, Synthetic Rope, Integrated Control Box

When recovery matters, reliability isn’t optional. The ARB 10,000lb Winch brings next-generation engineering to one of the most critical tools on your rig, combining a compact, all-in-one design with serious pulling power and refined control.

Built around a fully integrated motor control system, this winch eliminates the bulky external control box, allowing for cleaner installs, better airflow, and improved compatibility with modern bumpers, sensors, and tight mounting setups.

Whether you're tackling technical trails, deep mud, or overland recoveries, this system is designed to perform consistently when it counts.

Integrated Control Box Design

• Built-in motor control unit with direct-mount Albright contactor
• Eliminates external control box clutter
• Improves efficiency and delivers up to 8% more pulling power
• Ideal for low-profile or hidden winch installs

Zero Drag Braking System

• Gearbox-mounted brake ensures 100% load holding
• Allows powered unspooling under no load for easier operation
• Reduces heat transfer to the drum- protecting synthetic rope and extending lifespan

4-Stage Gearbox Performance

• Hardened steel gearsets for maximum durability
• 171:1 gear ratio balances torque and line speed
• Smooth, controlled operation under heavy load

Tuned 12V High-Efficiency Motor

• Series wound 5.3HP motor optimized for fast line speed with lower current draw
• Reduces heat buildup during extended use
• Maintains consistent pulling power in demanding recovery situations

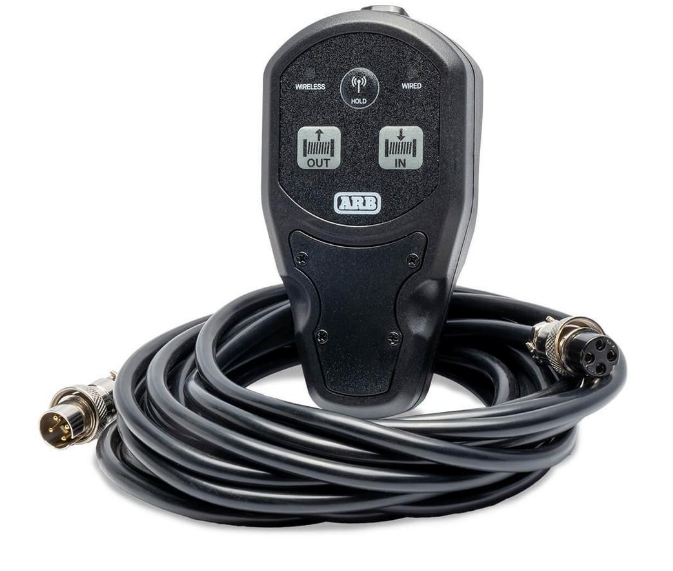

Dual Control Operation (Wireless + Wired)

• 2.4GHz wireless remote with up to 130' range
• Wired remote option (16') for direct control
• Sealed receiver circuitry eliminates signal interference from VHF/UHF radios

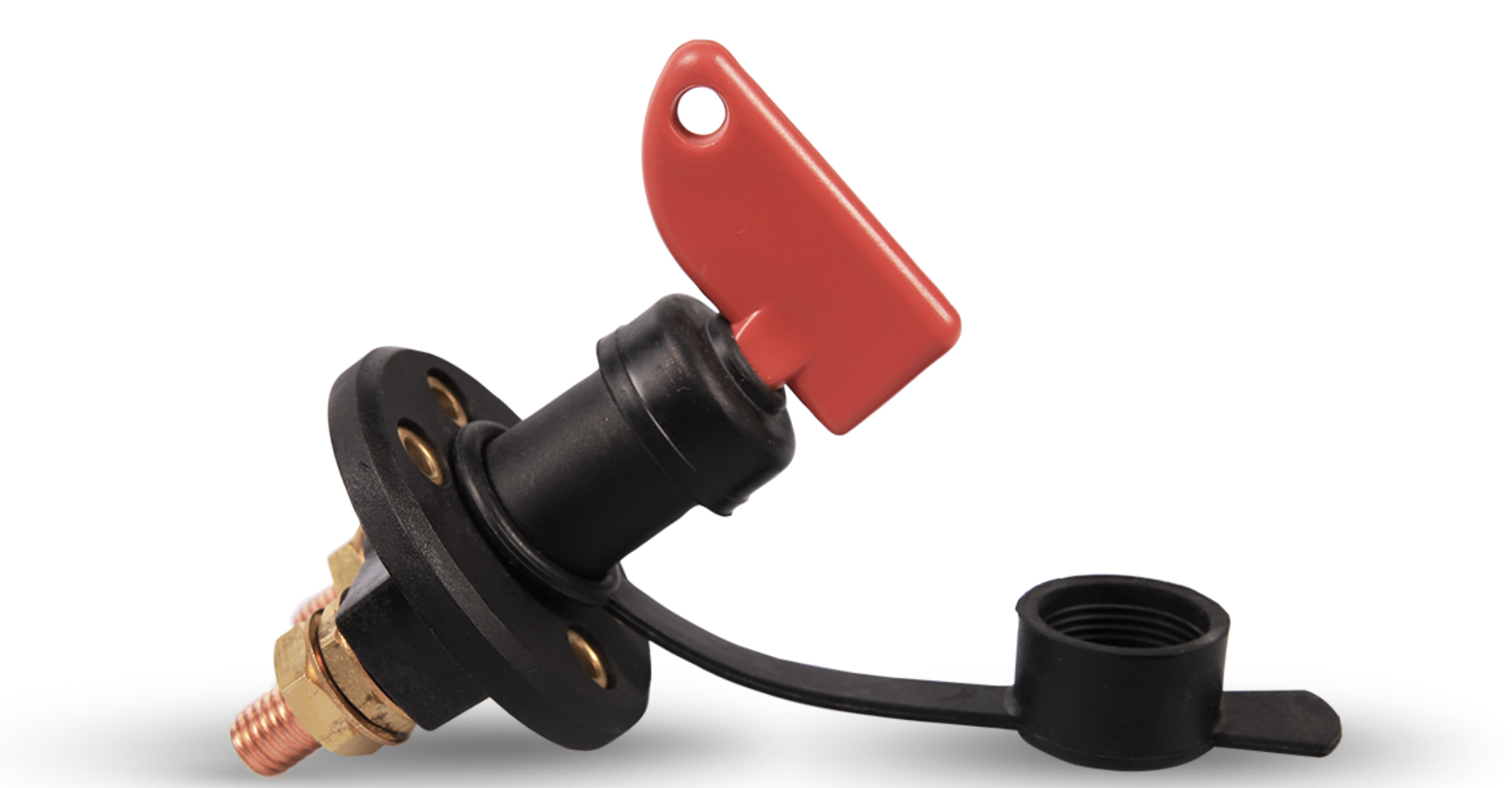

500A Power Isolation Switch

• Safely disconnect power when not in use
• Includes universal mounting, stainless lanyard, and dust cover
• Adds an extra layer of safety and theft prevention

Built for Easy Installation

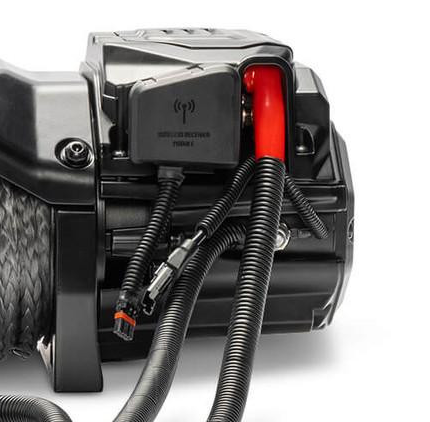

• Pre-wired connections for simplified setup

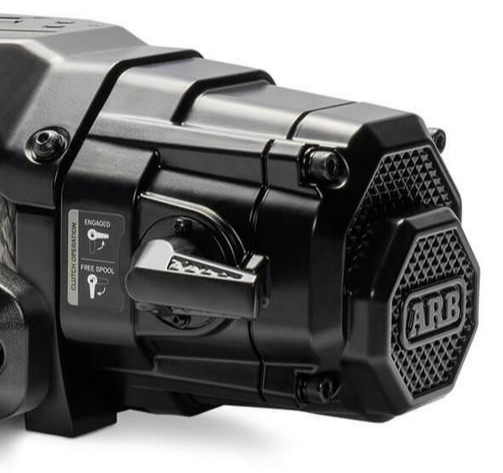

• 16 clutch handle positions (22.5° increments) for flexible mounting
• Remote-mounted control plug for hidden winch configurations
• One-piece bridging plate increases overall strength and rigidity

Built for Modern Off-Road Setups

The ARB 10K Winch is designed to integrate cleanly into today’s builds—especially where space is tight and airflow matters. With no external control box and flexible mounting options, it’s a solid fit for:

• Aftermarket bumper systems
• Hidden winch mounts
• Sensor-equipped vehicles
• Overland and expedition rigs

Why Choose the ARB 10,000lb Winch?

ARB took a different approach—refining every component from the inside out. By integrating the control system, improving braking design, and optimizing power delivery, this winch offers:

• Cleaner installs
• More efficient power transfer
• Reduced heat buildup
• Longer component life
• Reliable performance under load

This isn’t just another winch—it’s a purpose-built recovery system designed for real-world use.

Ideal For

• Jeep Wrangler JL / JK builds
• Jeep Gladiator JT setups
• Toyota Tacoma / 4Runner / Tundra
• Full-size trucks and overland rigs
• Trail recovery, overlanding, and expedition travel

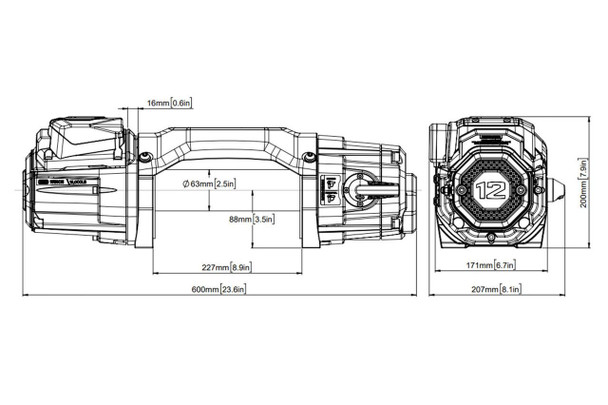

ARB 10,000LB WINCH SPECS
