Description
Introducing the Jeep JKU Compressor Cargo Bracket and Auxilary Battery Mount, which uses the space in the rear cargo area of your Jeep to mount your ARB twin compressor.
Utilizing all of the space in a JKU is a tough task. Most often, the space in the little cubby hole below the cargo floor in the rear of a JK is underutilized. That’s no longer a problem when you incorporate our Jeep JKU Cargo Compressor and Auxiliary Battery Mount. We also give you the option to incorporate an additional auxiliary battery to keep all of your accessories powered during your adventures.
OPTIONAL BATTERY MOUNT:
An optional Auxilary battery Mount can be selected at check out.
TYPE A
Dimensions:
Width: 5.31″ (135mm)
Length: 8.8″ (223mm)
Height: 7″ (178mm)
TYPE B
Dimensions:
Width: 7.17″ (182mm)
Length: 3.07″ (78mm)
Height: 6.46″ (164mm)

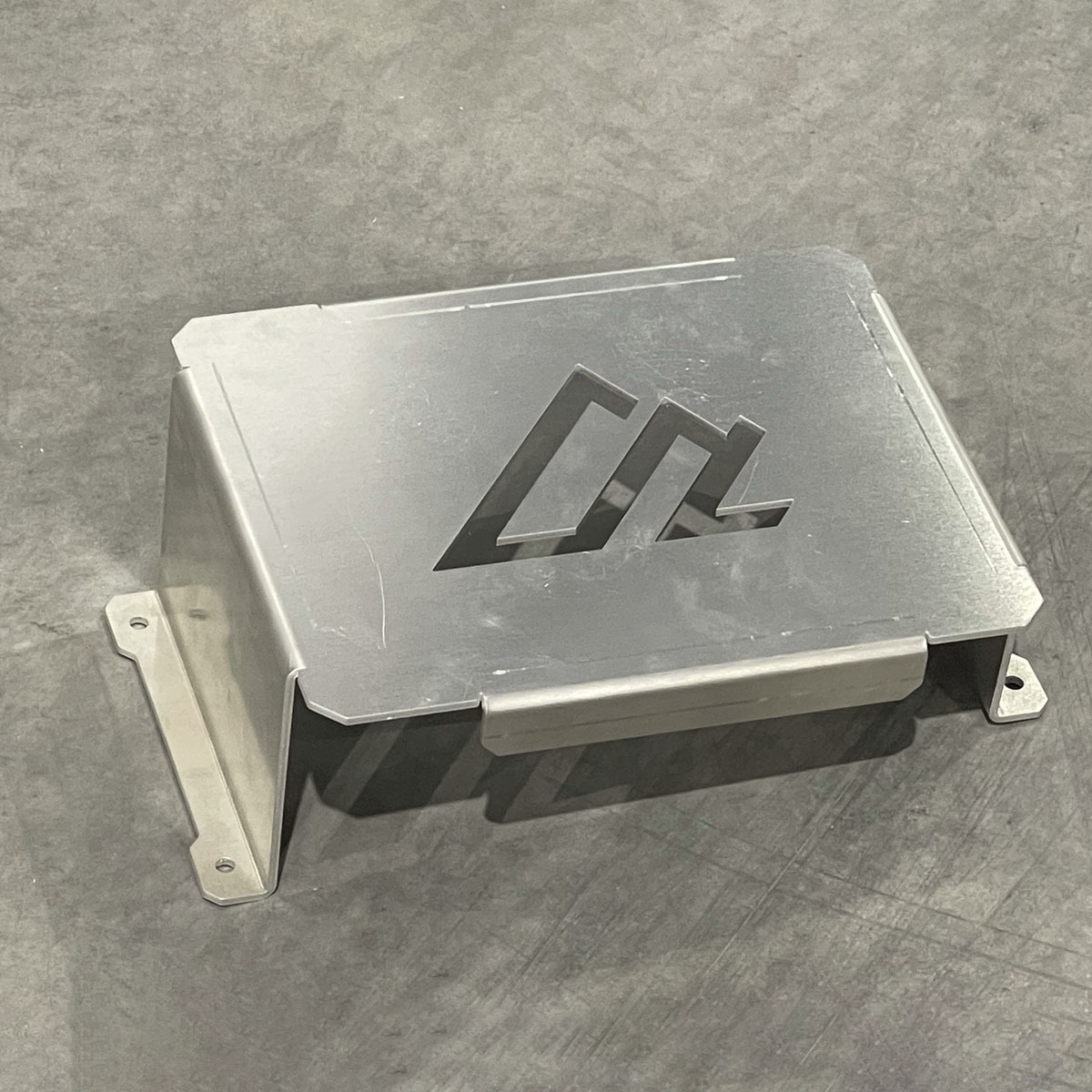

Made from 5052 1/8″ aluminum, this bracket is built to handle the stress of these heavy components. It bolts into the body using two existing threaded bungs.
It requires a single hole to be drilled near the middle of the small cubby hole. A rivet nut is then installed into that hole and the bracket bolts to that. It makes for a quick, simple, and secure installation.
NOTE:
- This requires removal of the plastic that surround the cubby area below the cargo area. There just isn’t enough vertical room for these components when this plastic is retained. The plastic part just sits in the cubby, so removal is quick and easy.
- The battery that we have used to fit in this mount is the Odyssey PC950. And now the Type B Batteries.
